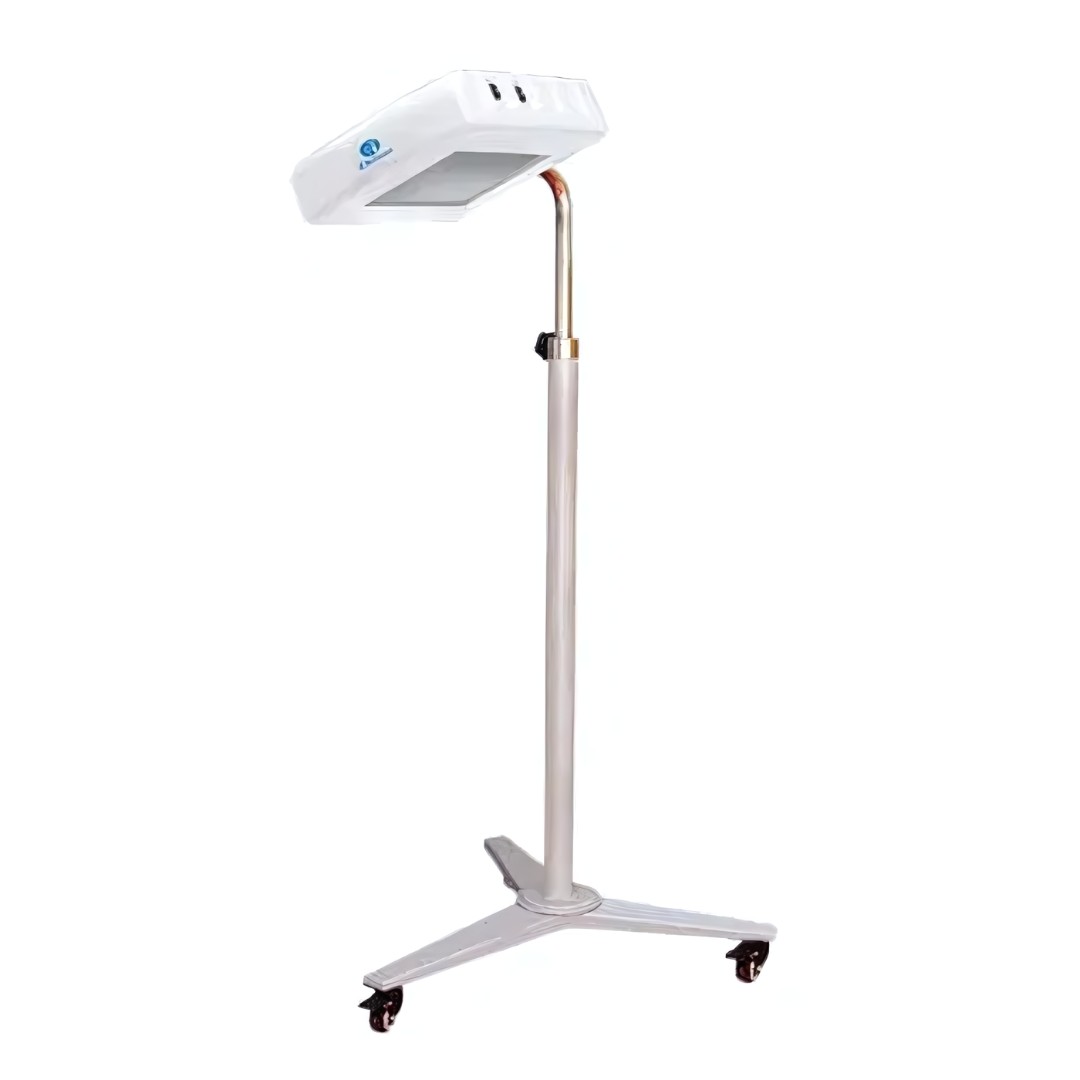

LED Phototherapy Unit
IREX 10 provides all the benefits of High Bright Blue LED technology in a compact and affordable design. Its superior design and performance comes from our unrelenting focus on meeting all performance parameters & clinical norms. The IRex 10 photo therapy machines covers entire body surface as a whole, the light focusing on the body. Most often the problem occurs where the LED lights used in the procedure of photography go scattered around the baby’s body. However, this major concern can be overcome with the use of the IREX 10 LED photo therapy machines where the light covers the body surface as a whole.
New born infants are at high risk of developing hyperbilirubinemia. It is more acute in preborn babies. LED Phototherapy is the clinically proven & technically superior method of treating jaundice in infants. IREX 10 brings the high efficiency of well calibrated LED Phototherapy Unit for treating jaundice in newborns. This specially designed budget mode, is designed to operate within the AAP parameters** of treating severe cases of jaundice in neonates, optimally and economically.
By ensuring strict adherence to clinical guidelines, I REX 10 ensures faster treatment through uniform light distribution and optimal wavelength and irradiance strength.
Operating I Rex 10 is an ease, with its simple user friendly mechanisms. It is compact and can be used in a variety of places. Its user friendly Y shaped wheel base slips easily under most warmers or bassinets.
* Assuming commercial rate of Rs. 7/- per electricity unit (kWh)
** American Academy of Pediatrics: Management of Hyperbilirubinemia in newborn infants 35 or more weeks of gestation. Pediatrics 2004: 297-316
CLINICAL GUIDELINES
430-490 nm
Should be grater than 30μ W/ cm2 per nm
Light should cover Maximum surface area
I REX 10 PERFORMANCE
450-470 nm
35μ W/ cm2 per nm
50 x 30 cms
| light sourse | - High Bright blue LED |
| Wavelength | - 450-470 nm |
| Spectral Irradiance | - 35μ W/ cm2 nm (at 30 cm height) |
| Effective Surface Area | - 50 x 30 cm |
| Electric Supply | - 229-240V, 50/60 Hz |
| Max Rating | - 3A, 220-240W, 50/60 Hz |
| Fuse | - 2A, 220-240W, 50/60 Hz |
| Light Unit | - 35.5 x 26 x 9 cms |
| Height | - 110 – 170 cms |
| Clearance of base | - 7.5 cms |
| Light unit tilt adjustment | - +/- 180⁰ |
| Operating Temperature | - 15⁰ C to 40⁰C |
| Humidity | - 0% to 95% non condensing |
| High Temperature Cutoff | - 85⁰C |
