LED Phototherapy


The New Benchmark in LED Phototherapy Unit

led phototherapy unit manufacturers

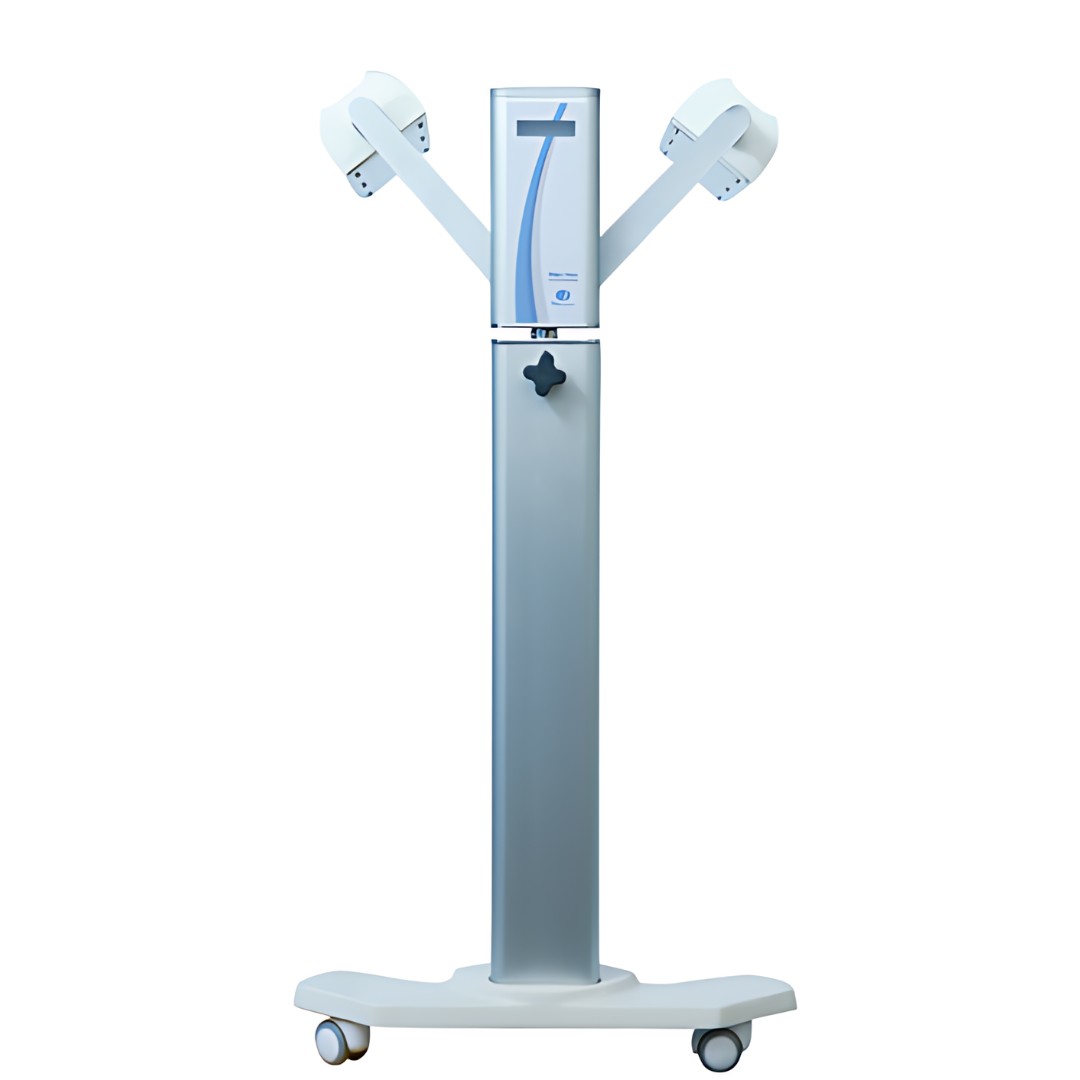

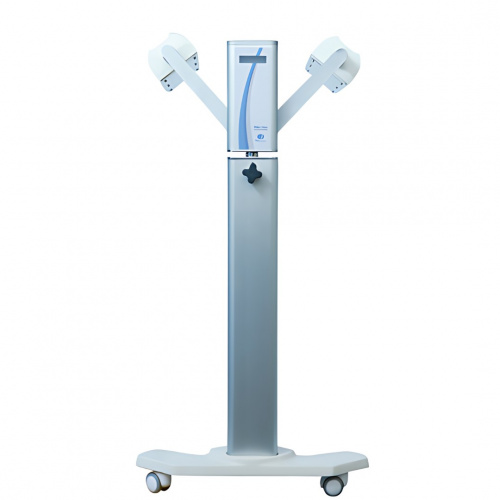

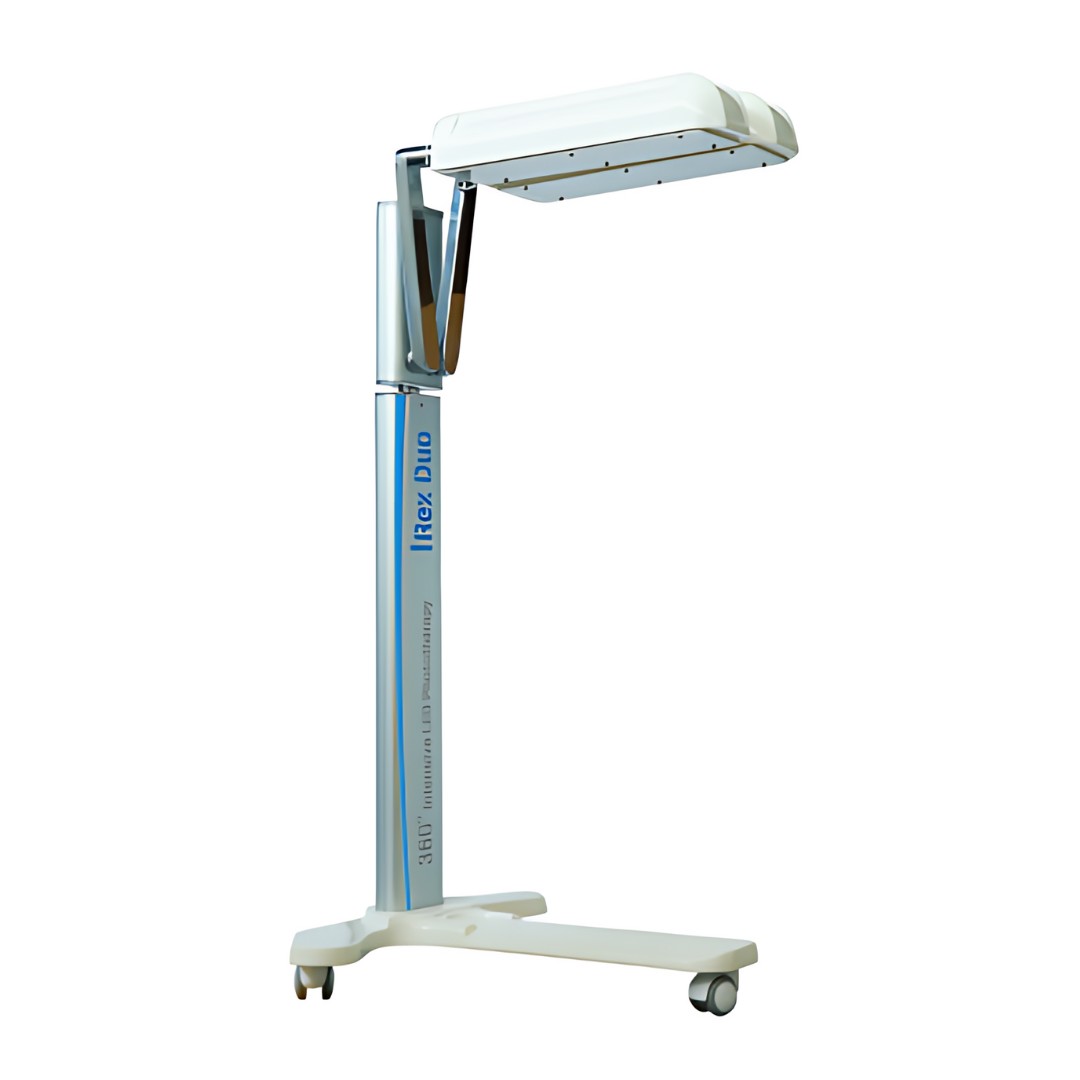

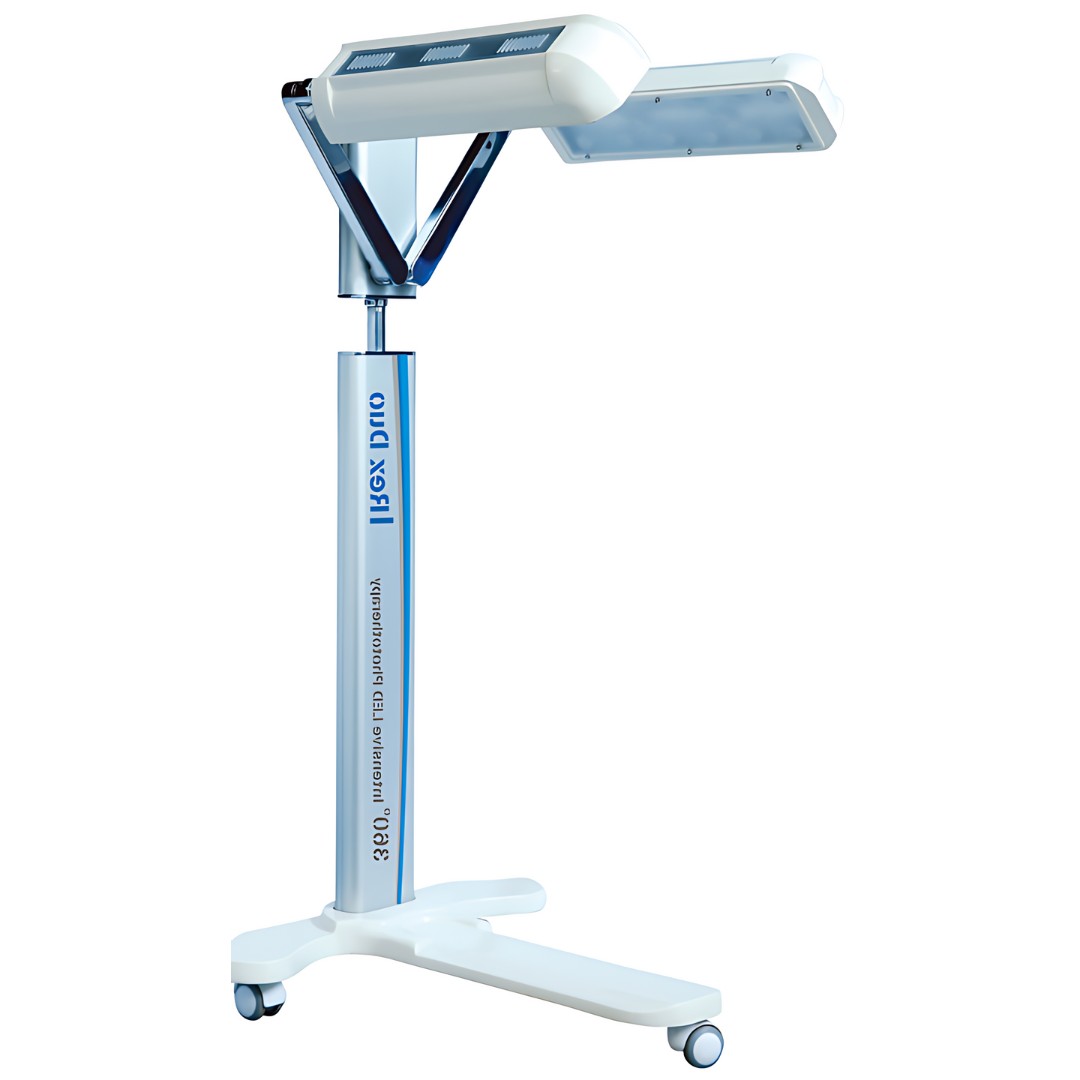

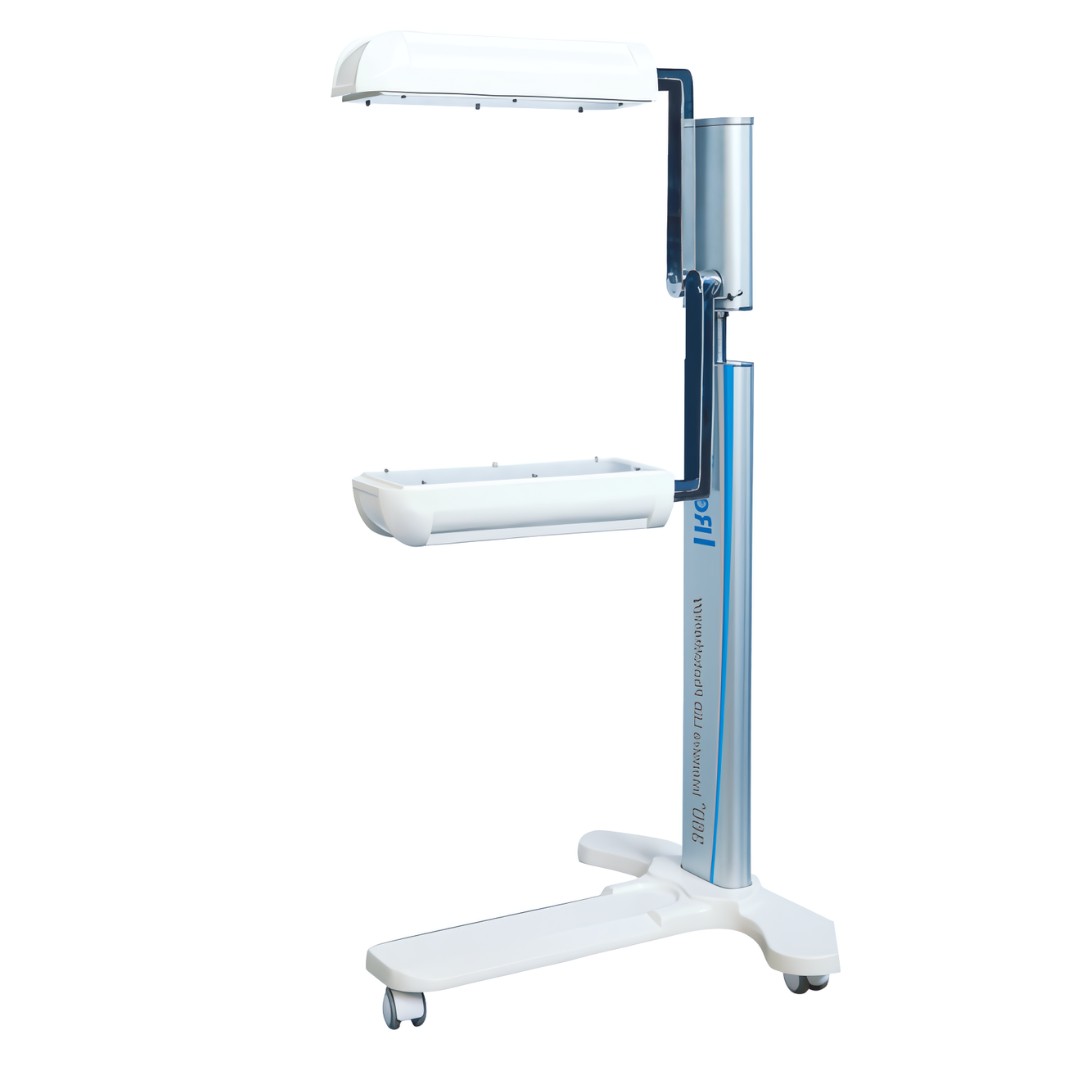

IRex Duo

Rotatable 360° Degree Phototherapy

The I Rex Duo, world first rotatable 360° phototherapy is a Single Unit having a Double Effect in treating neonatal jaundice.I Rex Duo has dual arm facility.I Rex Duo comprises of high efficiency well, calibrated LED phototherapy unit which is designed to operate within the AAP parameters** of treating severe cases of jaundice in neonates, optimally and economically.

Product Features

  • I Rex Duo has dual arm facility . This dual arms allow the physician to modulate the angle of light to provide the maximum desired intensity to cover the maximum body surface area.
  • IREX Duo also an option to actually measure the actual intensity of light delivered at baby’s skin level using an attachable irradiance meter.
  • I REX Duo can be used as a single surface phototherapy or as a double surface unit. I REX Duo can be used in conjunction with any radiant warmers.

Superior Performance

led phototherapy
led phototherapy for neonatal jaundice
led phototherapy unit manufacturers


430-490 nm

Should be greater than 30μ W/ cm2 per nm

Light should cover Maximum surface area


450-470 nm

15 - 70μ W/ cm2 per nm

50 x 30 cms

Technical Specification

Performance Specification

light sourse - High Bright Blue LED
Wavelength - 450-470 nm
Spectral Irradiance - 35μ W/ cm2 Per nm
Effective Surface Area - 50 x 30 cm
12 Blue LED Lamp for treatment
4 White LED Lamps for observation

Electrical Specification

Electric Supply - 180-240 V,50/60 Hz
Max Rating - 0.5 A,42 W, 50/60 Hz
Fuse - 2A

Physical Specification

Light Unit - 45*30*9 cm
Height - 150 cms
Clearance of base - 10 cms
Light unit tilt adjustment - +/- 360°

Environmental Specification

Operating Temperature - 15° C to 40° C
Humidity - 0% to 95% non condensing
