Raze CoV

  • UVGI disinfection system using 200–280 nm UV-C light
  • Deactivates bacterial DNA and viral RNA, including SARS-CoV-2
  • Eliminates 99.99% of pathogens within 5–10 minutes
  • Effective against influenza strains, MERS-CoV, SARS-CoV, MS2 bacteriophage
  • Fully automated operation with Android app control
  • Motion detection sensor ensures safety by switching off when humans are detected
  • Chemical-free disinfection suitable for enclosed environments
  • Supports both surface and air disinfection functions
  • Enhances air purification and environmental hygiene

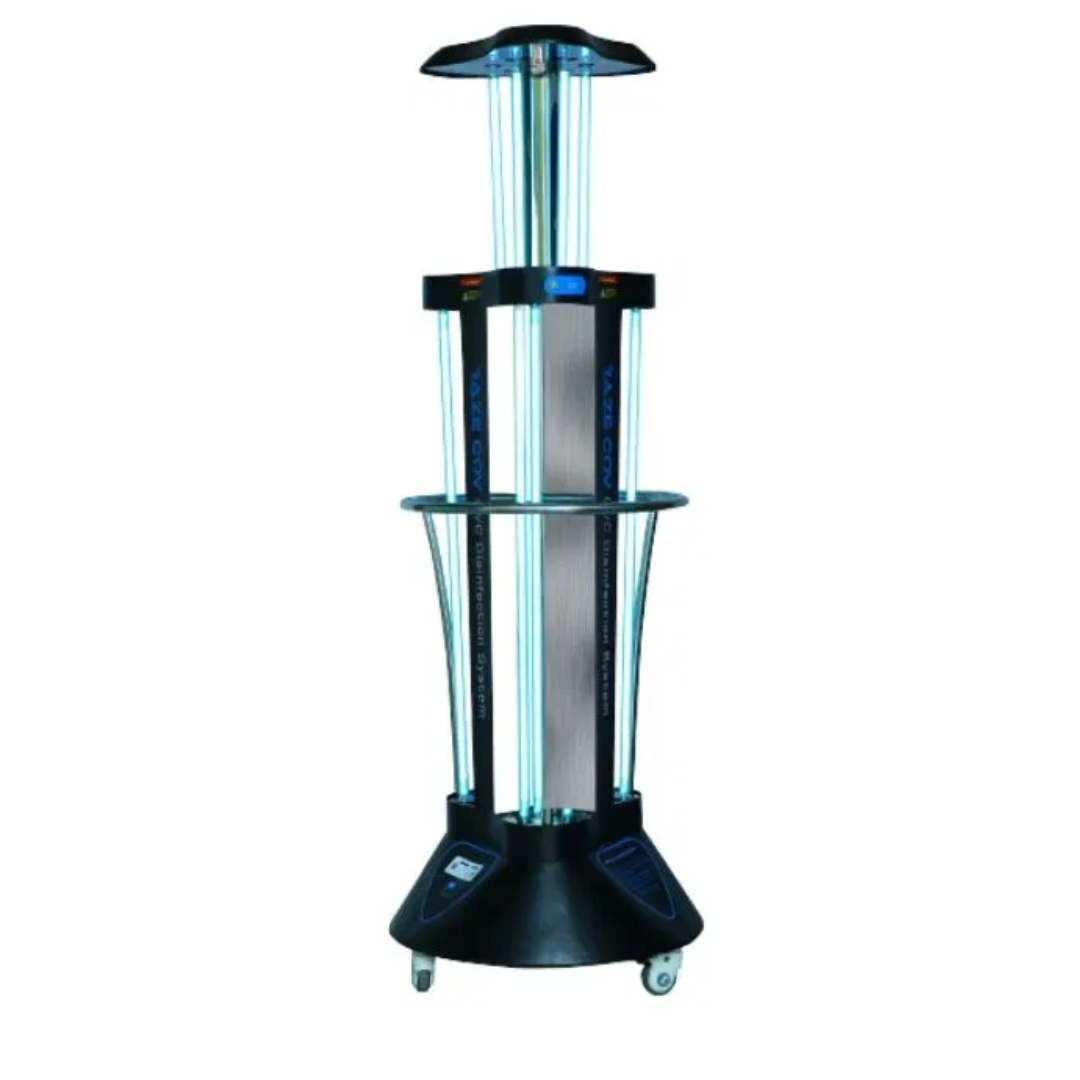

The Raze CoV UVC Disinfection System, developed by Ibis Medical Equipment and Systems Private Limited, is designed to deliver high-efficiency disinfection against SARS-CoV-2 and a wide spectrum of bacteria and viruses. Utilizing Ultraviolet Germicidal Irradiation (UVGI) light within the 200–280 nm UV-C wavelength range, the system deactivates the DNA of bacteria and RNA of viruses, providing a chemical-free sanitation process.

The system achieves 99.99% pathogen elimination within minutes, targeting high-risk pathogens such as MERS-CoV, SARS-CoV, multiple influenza strains (H1N1, H5N1, H7N9), MS2 bacteriophage, and Influenza A/PR/8/34. Designed for automated operation, it reduces the need for manual intervention and includes motion sensors and emergency auto shut-off for added safety.

With applicability in closed premises, commercial buildings, and public transportation, the Raze CoV system offers both surface and air disinfection while also enhancing indoor air quality. The device is operated and adjusted via an Android app, supporting real-time height and timer controls.

Power Requirement

220-240 VAC, 50 Hz, 2 Amp

Power

396 W

Height Adjustments

1680 – 2400 mm

Bulb Life

9000 hours

Safety

Emergency auto switch-off when it detects human movement

Positioning

Manual positioning

Control

Android app controls height adjustment and operation timer

Motion Sensors

Detects human intervention within 10 feet

Disinfection Time

5-10 mins for 25 sq.m

UV Wavelength

200–280 nm (UV-C band)

Disinfection Range

Surface disinfection: 6 m ; Air disinfection: 10 m

Mode Of Operation

Single-phase power supply
